How to Choose the Right Silicone Rubber Insulator?
Choosing the right Silicone Rubber Insulator requires more than comparing catalog prices or voltage ratings. Outdoor networks face ultraviolet radiation, salt deposits, industrial pollution, rain, ice, and sudden temperature changes. These conditions can slowly alter surface performance, even when the insulator looks intact.
The International Energy Agency’s Electricity Grids and Secure Energy Transitions report states that more than 80 million kilometres of grids may need addition or refurbishment by 2040. It also estimates that annual grid investment must rise above USD 600 billion. This expansion increases demand for reliable insulation materials, especially in harsh environments. CIGRE technical guidance on composite insulators highlights hydrophobicity, tracking resistance, erosion, mechanical strength, and aging behaviour as essential evaluation areas. Those properties matter beside a coastal substation, where salt crystals collect around sheds and moisture forms conductive paths.
A sound selection process begins with system voltage, creepage distance, mechanical load, installation height, and local pollution severity. Review IEC 61109 requirements and request independent test evidence, not only manufacturer claims. Check silicone formulation, housing quality, end-fitting design, sealing details, and long-term weathering results. Small design differences matter.
No option is perfect.
A higher-grade Silicone Rubber Insulator may cost more initially, yet reduce cleaning, outages, and replacement work. However, silicone alone cannot correct poor installation or unsuitable system design. Buyers should compare verified test data, field experience, warranty conditions, and maintenance records. Some reports provide broad market trends, but they cannot predict every site’s behavior. That limitation deserves attention. A practical decision combines standards, engineering calculations, supplier transparency, and realistic environmental assumptions.
Define the Electrical, Environmental, and Mechanical Requirements

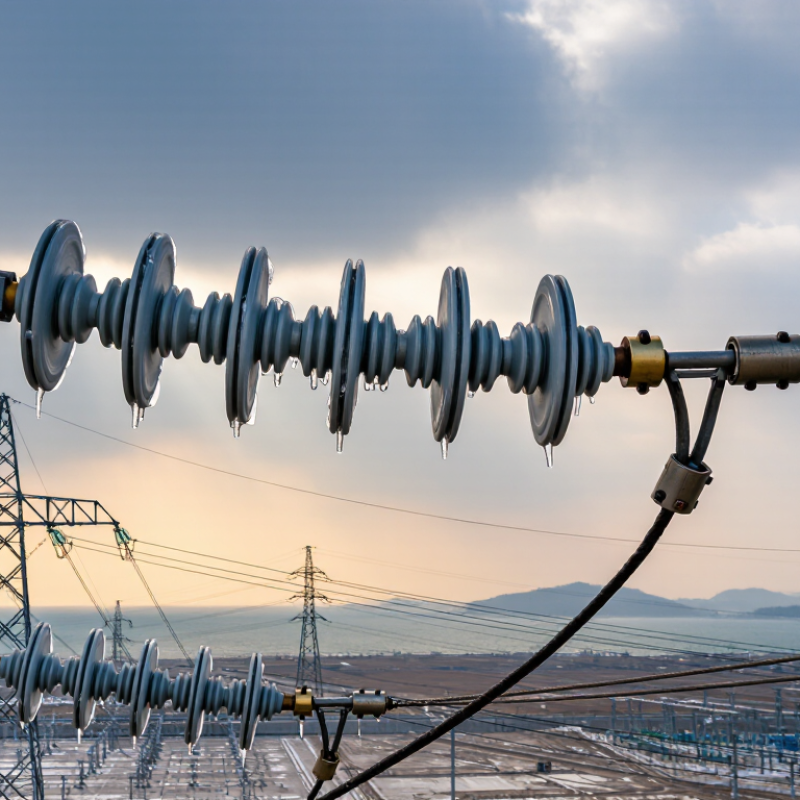

How to Choose the Right Silicone Rubber Insulator?
Choosing a silicone rubber insulator starts with the electrical duty, not its appearance. Record the operating voltage, frequency, impulse levels, and expected fault conditions. Then check creepage distance and clearance for the actual installation. Coastal air, industrial dust, and condensation can increase surface leakage. A smooth housing may look reliable, yet its profile might not control pollution effectively. Confirm insulation resistance, tracking resistance, and partial-discharge performance through documented test data.
Environmental exposure deserves equal attention. Silicone rubber usually performs well under ultraviolet radiation, ozone, moisture, and temperature changes. However, “weather resistant” is not a complete specification. Define the lowest and highest service temperatures, salt fog exposure, chemical contact, and altitude. Inspect the sealing area carefully. Small gaps can hold water and dirt. Laboratory results can also mislead when the test conditions differ from the site.
Mechanical requirements are often underestimated. Specify tensile loads, cantilever forces, compression, vibration, and installation torque. Consider thermal expansion between the silicone body, fittings, and connected equipment. A rigid assembly may crack or loosen after repeated heating cycles. It happens. Request qualification reports, dimensional drawings, material details, and production inspection records. Review whether the tests match the intended application and applicable electrical standards. I would also examine samples after aging, not only when they look new. A practical trial under controlled field conditions can reveal mounting problems that calculations miss.
Compare Silicone Rubber Insulator Materials and Performance Grades
Choosing the right silicone rubber insulator starts with its material form. High-temperature vulcanized silicone offers strong mechanical stability and suits outdoor electrical hardware. Liquid silicone rubber fills complex molds with fewer seams and consistent wall thickness. Room-temperature vulcanized silicone works well for field repairs and sealing, but curing conditions affect reliability. Moisture and surface contamination still matter.
Performance grades require closer comparison. Check continuous temperature ratings, voltage class, tensile strength, hardness, and resistance to tracking and erosion. A higher grade is not automatically better. For coastal equipment, hydrophobicity and pollution resistance may outweigh maximum tensile strength. In cold regions, flexibility below freezing becomes important. Small details matter.
Test data should match the installation. A silicone insulator beside a dusty road faces different stresses than one inside a clean substation. Review thermal cycling results, weathering data, and dimensional tolerances. Then compare the required creepage distance with the expected voltage and pollution level. Do not rely on one impressive specification. A common mistake is selecting a very hard compound for support, then discovering poor sealing around uneven surfaces. Softer silicone may conform better, but it can deform under sustained load. This trade-off deserves practical testing. Even careful material comparisons can miss real installation problems. A sample exposed to heat, rain, salt fog, and mechanical vibration often reveals more than a catalog table.
Check Safety Standards, Certification, and Product Quality
Choosing the right silicone rubber insulator requires more than checking its color, shape, or price. Safety standards should match the product’s voltage, temperature, moisture, and installation environment. Relevant requirements may include IEC, UL, or national electrical standards, depending on the market. A qualified supplier should provide current test reports, certification details, and clear product identification.
Look closely at the certificate. Confirm the exact model, material grade, rated voltage, and testing laboratory. The certificate must apply to the delivered product, not only to a similar sample. During inspections, I also check lot numbers and traceability records. Small details matter. A missing batch record can make quality investigations difficult.
Product quality appears in practical measurements. Check dielectric strength, insulation resistance, hardness, compression set, and dimensional tolerance. Examine the surface for cracks, bubbles, flash, or uneven edges. Silicone may remain flexible while hidden defects develop inside. I have seen suppliers rely too heavily on certificates, which is a weakness. Documents can be outdated, incomplete, or misunderstood. Independent sampling and repeat testing provide stronger evidence. Ask how the material performs after heat aging, ultraviolet exposure, and repeated compression. A reliable manufacturer should explain test methods, acceptance limits, and storage conditions without avoiding technical questions. Safety comes from verified performance, not attractive paperwork.
Select a Reliable Supplier and Plan Long-Term Maintenance
Choosing a silicone rubber insulator is not only a material decision. It is a reliability decision. Select a supplier that understands your voltage, climate, pollution level, and installation method. Request verified test reports, production records, and clear material specifications. Batch traceability matters when a failure appears years later. A dependable supplier should also explain aging behavior, not simply promise long service life.
Ask how the supplier controls silicone quality during molding and assembly. Check dimensional tolerances, sealing details, metal fittings, and resistance to ultraviolet exposure. Independent testing can strengthen confidence. However, documents alone are not enough. Review sample parts carefully, and inspect the supplier’s quality process when possible. Small surface defects may become serious under rain, salt, or repeated temperature changes.
Plan maintenance before installation. Record the insulator’s condition with dated photographs and inspection notes. After severe storms, check for cracks, flashover marks, loose hardware, chalking, and heavy contamination. Use shorter inspection intervals near coastlines, factories, or dusty roads. Cleaning methods must follow the supplier’s instructions and site safety rules. A clean surface can still hide internal damage. Field experience shows that checklists sometimes miss fitting corrosion. Earlier maintenance plans often focused too much on the silicone body. They should examine the complete assembly. Keep replacement parts available, review inspection trends annually, and revise the plan when operating conditions change.
How to Choose the Right Silicone Rubber Insulator?
Recommended evaluation weighting for selecting a reliable supplier and planning long-term maintenance.
How to use this chart: Prioritize electrical insulation and tracking resistance, operating temperature, and resistance to UV, ozone, and moisture. Confirm the supplier’s material data, quality records, dimensional control, and traceability before approval. A practical maintenance plan should include visual inspections, contamination removal, hardware checks, and condition-based replacement.
